Thursday, October 15, 2009

BizTalk 2009 64 bit - Don't forget to run BizTalk Adapter v2.0 for mySAP Business Suite in 32bit host

Note: this post is strictly related to the .Net Connector version of the SAP adapter and NOT the WCF based LOB Adapter.


When using the BizTalk Adapter v2.0 for mySAP Business Suite adapter on a 64bit machine, don't forget to run your Host Instance as a "32 bit Host".

Otherwise you will get prompted with the following error:




Log Name: Application
Source: BizTalk Server 2009
Date: 10/15/2009 10:54:28 AM
Event ID: 5697
Task Category: BizTalk Server 2009
Level: Error
Keywords: Classic
User: N/A
Computer: Server

Description:
The Messaging Engine encountered an error when intializing the receive adapter "SAP", HRESULT:"Retrieving the COM class factory for component with CLSID {1EB415A4-242C-4E28-9E9C-33367784F01E} failed due to the following error: 80040154.".
Event Xml:
<event xmlns="http://schemas.microsoft.com/win/2004/08/events/event"><system><provider name="BizTalk Server 2009">
<eventid qualifiers="49344">5697</eventid>
<level>2</level>
<task>1</task>
<keywords>0x80000000000000</keywords>
<timecreated systemtime="2009-10-15T16:54:28.000Z">
<eventrecordid>21227</eventrecordid>
<channel>Application</channel>
<computer>Server</computer>
<security></system><eventdata>
<data>SAP</data>
<data>Retrieving the COM class factory for component with CLSID {1EB415A4-242C-4E28-9E9C-33367784F01E} failed due to the following error: 80040154.</data> </event>

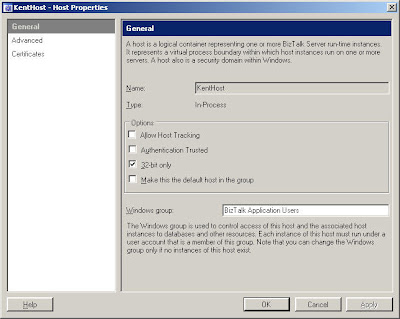

Change the Host to 32 bit, restart Host Instance and you should be fine. The reason for this is that the pre-requisite SAP Dot Net connector does not support native 64 bit. Here is a link for more details.

1 comment:

Rohit said...

To add to the above post :
You can get a similar error messge(except that the error code is different), if a non compatible version of SAP .Net connector is installed. I have ran into this issue several times while setting up a new environment for this Adapter (wasteing several hours trying to figure out what went wrong).

If you are using BizTalk Adapter v2.0 for mySAP Business Suite, please ensure that the Sap.Connector.dll is in GAC and it's File version is - 1.2.2.0.
